Pre-lecture Questions

How to add headings?

In R chunk use code options : fig.cap="**Figure Caption**"

barplot(c(1,2,3,4))

Figure 1: Figure Caption

Another option would be to have the first row of your table be your title and then format so the first row doesn’t have any line filler in it.

Stackoverflow

report <- list()
report[[1]] <- "Report Name"
report[[2]] <- head(mtcars)
report

## [[1]]
## [1] "Report Name"
##
## [[2]]
##                    mpg cyl disp  hp drat    wt  qsec vs am gear carb
## Mazda RX4         21.0   6  160 110 3.90 2.620 16.46  0  1    4    4
## Mazda RX4 Wag     21.0   6  160 110 3.90 2.875 17.02  0  1    4    4
## Datsun 710        22.8   4  108  93 3.85 2.320 18.61  1  1    4    1
## Hornet 4 Drive    21.4   6  258 110 3.08 3.215 19.44  1  0    3    1
## Hornet Sportabout 18.7   8  360 175 3.15 3.440 17.02  0  0    3    2
## Valiant           18.1   6  225 105 2.76 3.460 20.22  1  0    3    1

Your goal is to minimize time as much as possible.

Don’t spend a lot of time formatting your tables until they are going to be final.

Basic Principles

What to organize?

It is probably useful to have a system for organizing:

• data analysis projects;
• first-author papers;
• talks.

Think about organization of a project from the outset!

Collaborative Projects

• Google drive
• Overleaf

Some advice:

• Address organization from the outset.
• Ideally, bring people on board to your (version controlled, reproducible) system.
• Keep open lines of communication (especially if using GitHub)

Even if some elements of the project are outside your control, you can try to bring in elements to your workflow.

• E.g., if you receive comments with tracked changes from a colleague, incorporate them into the document, add a commit message describing who’s edits they were.

If working on a shared GitHub repo, keep open lines of communication, e.g., short emails (or slack messages, etc…), “Just pushed x…”

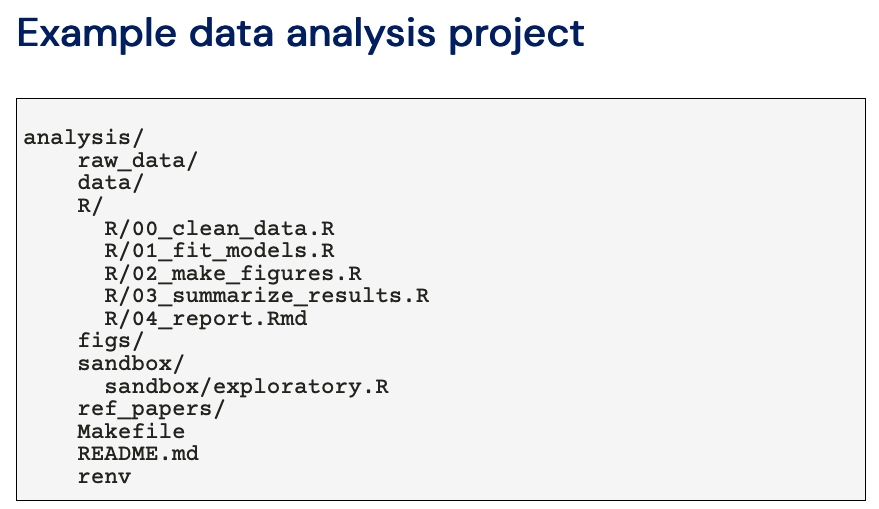

• raw data is sacred
• clean data will be saved into the data folder
• serperate scripts out by language or have a code directory
• numbering equations will give an indicator in what order the code runs.
• sandbox directory for exploratory data analysis that no one really needs to see.
• Makefile
• renv is a way to manage R package

Note: To go back two levels in your file directory: ./../../

Organizing Data

• Dont be tempted to edit raw data by hand
• Everything scripted
• Let collaborators know: “Don’t color code things.”
• Ask for a moc data set ahead of time so you know their form ahead of time to talk about raw data formatting ahead of time.

Use meta-data files to describe raw and cleaned data.

• structure as data (e.g. .csv so easy to read)

Tidy Data by Hadley Wickham

• Worth the read
• Each Varibale forms a column
• Each observation forms a row
• Each observation unit forms a table.

Exploring data

One of the first things we’ll often do is open the data and start poking around.

• Could be informal, “getting to know you.”
• Could be more formal, “see if anything looks interesting.”

This is often done in an ad-hoc way:

• entering commands directly into R;
• making and saving plots “by hand”;
• etc…

Slow down and document

• Your future self will thank you
• even if it is just in a google doc to yourself.

You want to avoid situations like:

• need to recreate a plot that you made “by hand” and saved “by hand”;
• figuring out why you removed certain observations;
• trying to remember what variables had an interesting relationship that you wanted to follow up on later.

Write out a set of comments describing what you are try to accomplish and fill in code from there.

• I do this for every coding project.
  • Data analysis, methods coding, package development

Leave a search-able comment tag by code to return to later

• I use e.g., # TO DO: add math expression to labels; make colors prettier.

Sets “the bones” of a formal analysis in place while allowing for some creative flow.

From the outset, stop and think about what you want to do. Start filling in details from there. That simple approach will increase efficiency and reproducibility.

Other helpful ideas for formalizing exploratory data analysis:

• .Rhistory files
  • all the commands used in an R session
• Informal .Rmd documents.
  • easy way to organize code/comments into readable format
• save intermediate objects and workspaces
  • and document what they contain!
• knitr::spin
  • writing .R scripts with rendered-able comments
• Juypyter Notebook

# include at the top of script
here::i_am('R/my_analysis.R')

## here() starts at /Users/randi/Desktop/2022/rbolt2/content/english/post/2022-05-05-project-organization-data-sciene-toolkit

# now add all your R code

# include at the top of script
here::i_am('index.en.Rmd')

## here() starts at /Users/randi/Desktop/2022/rbolt2/content/english/post/2022-05-05-project-organization-data-sciene-toolkit

# load data
my_data <- read.csv(here::here('data','my_data.csv'))

# do some analysis to get results
my_results <- sum(my_data)

# save results
save(my_results, file = here::here('output', 'my_results.RData'))

Example Code

To begin look at the Makefile

The analysis here is going to culminate in a report, so we have a rule to make a report which says to render the report.Rmd document that lives in the Rmd folder.

We can see the rule for making our report has a prerequisite. It depends on the source code (rmd shown below) and the barchart.png figure in fig folder.

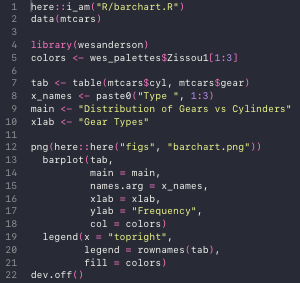

The rule for making that chart is shown on line 4: figs/barchart.png, which depends on the barchart.R code in the R directory.

This report is saying that we looked at some data and make a figure which lives in the “figs” folder and is called “barchart.png”.

This is making a barchart out of the mtcars data.

In the terminal now run make report, then open the report by typing open Rmd/report.html.

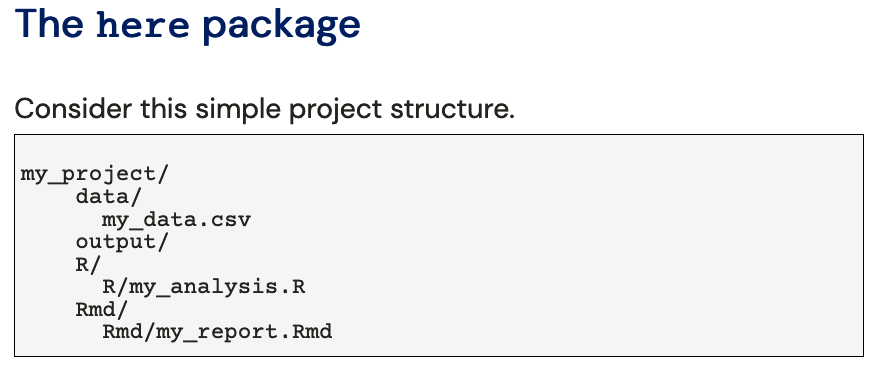

Here package (Two examples)

Identity where the folder is in relation to the project root.

In the R folder create an R file test.R with the following in code:

In test.R change line 3 from here::here() to here::here("figs"), save, and run:

Example 2

Now create an R file similar to the previous example and play around with the here function. Then remove the files that were just added:

Package management system : `renv``

We want to record not only what packages we are using but:

• which versions of those packages we are using
• Where we downloaded those packages from
• what version of R we are using

In example_project identify the projects that we need:

1. here
2. wesanderson
3. knitr
4. rmarkdown

Note: renv needs to already be installed in R.

A list should be returned that shows the packages we are using, and the packages those packages depend on. Then it is saving all of that information into a lockfile which is now saved into the project file.

Notice that other files appeared as well, such as “.Rprofile” which is a single line that says one line: ‘source(“renv/activate.R”)’. When you open R the software is looking for these .Rprofile files (similar to bash or zshell). Be careful messing with this file, because that creates issues with reproducibility.

The line `(“renv/activate.R”)’ is making R aware that we are in a project directory and there is a package library that’s associated with that package directory.

We also now have an “renv” folder which contains activate scripts, and takes all of the specific versions of packages and places them into the project library. Note that it wont actually put those files into the folder, but will search your computer for that version of the package and link to that. That way you don’t have a lot of duplicate packages on your computer.

Notice there is a different output, which recognizes our package environment. If you get errors loading packages then type the following into the terminal:

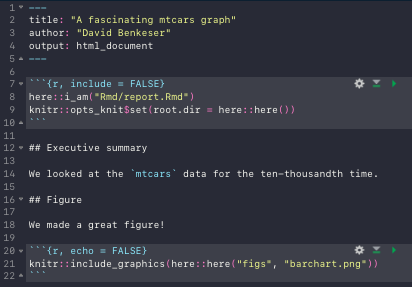

Now look back at the rmd file report.Rmd at lines 8 and 9, shown below.

Line 8. Recognizes where this file is in relation to the project directory.

Line 9. This is saying anytime you find R code in this rmd script, run it from the project directly (which is where the code needs to be run from to make it aware of renv and packages needed).

Moral of the story is to copy these two lines of code at the top of all of our rmd.

Colaborating with renv

User A initializes the lockfile using renv::init().

User A commits the following to github:

• renv.lock
• .Rprofile
• renv/activate.R

User B clones and downloads repo, and uses renv::restore() to synchronize their local project directory.

User B adds new packages to code, uses renv::snapshot() to record changes to renv.lock

User B commits renv.lock and pushes to GitHub.

User A pulls from GitHub, opens R, and uses renv::restore() to synchronize their local project directory.

Breakout Exercise

Verify a git folder has been added.

Now create a github repository for example project, and copy the line of code that looks like the following into the terminal:

Note: you might have issues if your github isn’t cached.

For the first Commit:

Verify everything was added, otherwise:

Verify everything was added.

Verify github was updated.

User B then forks the repository to make a copy of it onto their computer. Cope a similar line of code shown below into the terminal:

Verify report runs.

Then open the barchart.R file to change following two lines of code:

Save.

This will return the following:

You will now have a new lockfile.

Then commit.

User A can then try these changes out in an isolated environment.

Verify changes.

Now user A wants to change the colors again.

Then update the barchart.R file by removing lines 4 and 5, then replacing them with:

Save, then in the terminal:

Verify report looks good.

B’s then copies the updated repository, and in the terminal:

Verify colors are baseR.

The end ~
